What are SSH Keys?

SSH keys are a pair of cryptographic keys used for authenticating and securing SSH (Secure Shell) connections. SSH keys provide a more secure and convenient alternative to password-based authentication. Here’s an overview of SSH keys and their functionality:

Key Concepts

  1. Public and Private Keys:
    • Private Key: Kept secret and stored securely on the user’s local machine. This key should never be shared.
    • Public Key: Shared with the remote server you wish to access. This key can be distributed without compromising security.
  2. How They Work:
    • When you attempt to connect to a remote server, the server uses the public key to create a challenge message that only the corresponding private key can decrypt.
    • If your local machine successfully decrypts the challenge using the private key, the server grants access.
  3. Key Pairs:
    • SSH keys are generated in pairs using cryptographic algorithms like RSA, DSA, or ECDSA. These algorithms ensure that the keys are mathematically linked but cannot be feasibly reverse-engineered.

Advantages of SSH Keys

  1. Security:
    • SSH keys provide strong authentication and are virtually immune to brute-force attacks.
    • Using SSH keys eliminates the risk of password theft, especially through phishing attacks.
  2. Convenience:
    • Once set up, SSH keys allow for passwordless logins, which simplifies the process of accessing remote servers.
    • SSH keys can be used for automating tasks that require SSH connections, without the need to store plaintext passwords.
  3. Flexibility:
    • SSH keys can be used with various SSH clients and servers across different operating systems.
    • Multiple public keys can be added to a single server account, allowing multiple users or devices to access the same account securely.

Potential Issues

  1. Security Risks:
    • If the private key is compromised, unauthorized users can gain access to your accounts. It’s crucial to protect your private key with a strong passphrase and secure storage.
    • Users should regularly rotate their keys and remove unused public keys from servers.
  2. Configuration Complexity:
    • Setting up SSH keys requires some technical knowledge and can be confusing for beginners.
    • Misconfigurations can lead to access issues, requiring careful attention to detail.

SSH keys are a powerful and secure method for authenticating SSH connections. They provide enhanced security and convenience over traditional password-based logins. By understanding and properly managing SSH keys, users can significantly improve the security of their remote server access.

Problem Statement

PuTTY is a free and open-source SSH and telnet client. It is primarily developed by Simon Tatham for Microsoft Windows but now it supports a wide variety of other operating systems. Public key authentication is a feature of PuTTY, in which, we can configure SSH Keys to allow password less logins to Linux machines from our PuTTY terminals.

In this article, we will setup SSH Keys in PuTTY by using PuTTYgen and then configure a CentOS 7 machine for password less logins by SSH client.

Environment Specification

One Microsoft Windows based client and a CentOS 7 based server.

Generate SSH Keys using PuTTYgen

PuTTYgen is included with PuTTY SSH client. Both are free and open source and distributed under MIT License. Therefore, it is available for free download at PuTTY official website.

We have already installed PuTTY SSH client on our MS Windows client.

Search and run PuTTYgen application.

PuTTY Key Generator
PuTTY Key Generator

Click on Generate button to generate a SSH Public/Private keys pair.

PuTTY Generate Random Key
PuTTY Generate Random Key

Meanwhile, we are required to scroll mouse in the area under the progress bar for randomization and generation of SSH Keys.

PuTTY Key Generated
PuTTY Key Generated

PuTTYgen has generated a SSH Public/Private keys pair.

Click on Save private key button to save the SSH Private Key locally.

PuTTY Passphrase Warning
PuTTY Passphrase Warning

Since, we are not defining any passphrase, therefore, PuTTYgen is displaying the above warning.

Ignore it and click on Yes.

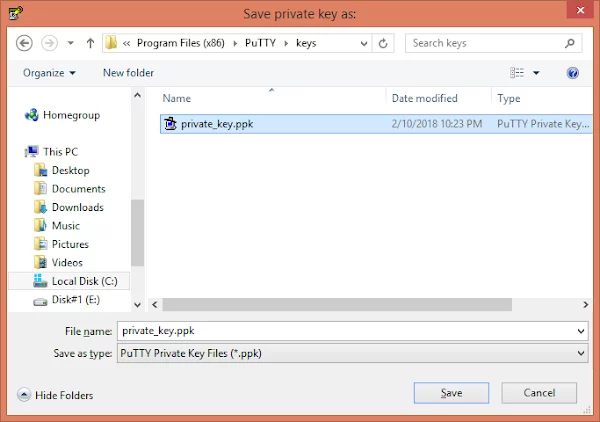

PuTTY Save Private Key
PuTTY Save Private Key

We have saved our Private SSH Key in a local directory. You can also save your Public SSH Key in the same way, if you plan to use this same SSH Keys pair for more than one Linux machines.

PuTTY Copy Public Key
PuTTY Copy Public Key

Select the generated SSH Public Key and copy it to clipboard.

Setup SSH Keys in PuTTY

Connect to our CentOS 7 machine using PuTTY and insert SSH Public Key in ~/.ssh/authorized_keys file.

login as: root
root@192.168.116.131's password:
Last login: Tue Jan  1 18:58:53 2019 from 192.168.116.1
# mkdir ~/.ssh
# vi ~/.ssh/authorized_keys
# exit

Now, open PuTTY and add a session for that CentOS 7 server.

PuTTY Create SSH
PuTTY Create SSH

Besides other settings, we are required to include our Private SSH Key as follows:

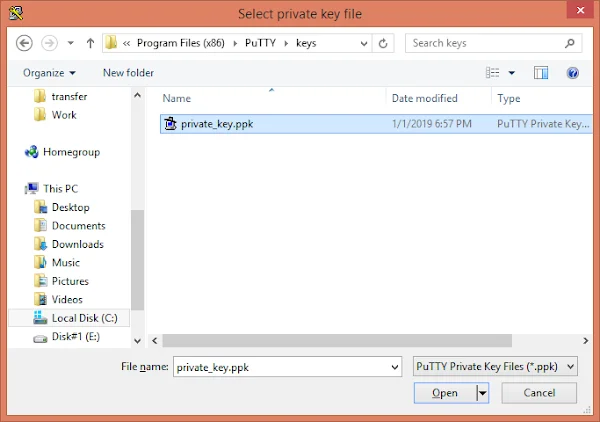

PuTTY Import Private SSH Key
PuTTY Import Private SSH Key
PuTTY Configuration 3
PuTTY Configuration 3

Save first and then open this session.

login as: root
Authenticating with public key "rsa-key-20190101"
Last login: Tue Jan  1 18:59:44 2019 from 192.168.116.1
#

Our CentOS 7 server won’t prompt for a password this time.
