How to install PNP4Nagios on CentOS 7

Learn how to install PNP4Nagios on CentOS 7 with this detailed guide. Enhance your Nagios monitoring setup with performance data graphing and visualization. #centlinux #linux #nagios

Problem Statement

In search of a graph add-on for Nagios, we have already explored the Nagiosgraph, although it works fine. But we kept looking for other alternates to Nagiosgraph. This is how PNP4Nagios pulls our attention towards it. PNP4Nagios is an add-on to Nagios which analyzes performance data provided by plugins and stores them automatically into RRD-databases (Round Robin Databases).

What is PNP4Nagios?

PNP4Nagios is an add-on for Nagios that provides performance data graphing and visualization. It works by processing the performance data output from Nagios plugins and storing this data in a way that can be visualized through graphs and charts. Here are some key features of PNP4Nagios:

1. Performance Data Collection: PNP4Nagios collects performance data from Nagios checks and plugins.
2. Data Storage: The collected data is stored in RRD (Round Robin Database) files, which are efficient for time-series data.
3. Graphing: It generates graphs from the stored data, making it easy to visualize trends and performance metrics over time.
4. Integration: PNP4Nagios integrates seamlessly with Nagios, providing a web interface for viewing the graphs alongside Nagios alerts and checks.
5. Customization: Users can customize the appearance and settings of the graphs to meet specific monitoring needs.

PNP4Nagios enhances the functionality of Nagios by providing a powerful tool for monitoring performance data, helping administrators to identify trends, diagnose issues, and optimize system performance.

Recommended Training: Nagios | Ultimate IT monitoring guide with EyesOfNetwork from Tech Academy

Nagios Server Specification

In this article, we will install PNP4Nagios plugin on our Nagios Core Server over CentOS 7.

PNP4Nagios can be configured in different ways like SYNC, BULK, BULK+NPCD, etc. Although the SYNC mode is claimed to has the most straight forward configurations, but unfortunately it didn’t work for me due to some bug (related to Environment Variables) in Nagios 4.x. Therefore, I switched to BULK+NPCD mode.

We have configured a CentOS 7 virtual machine with Nagios Server having following specifications.

• CPU – 2.4 Ghz (1 Core)
• Memory – 1 GB
• Storage – 20 GB
• Swap – 2 GB
• Operating System – CentOS 7.6
• Nagios Version – Nagios Core 4.4
• IP Address – 192.168.229.131/24

Read Also: Grafana PNP4Nagios Configuration on CentOS 7

Mac Mini M4 Dock, Aluminum Mac Mini Stand and HDMI Hub for Mac Mini M4 and M4 Pro 2024 with M.2 NVMe/SATA SSD Enclosure, 4K60Hz HDMI,10G USB A/C, 5G USB A*2, USB-C Charge, SD/TF, Audio

(38)

$109.99 (as of February 23, 2025 17:40 GMT +00:00 – More infoProduct prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.)

Install PNP4Nagios on Nagios Core

Install prerequisites packages using yum.

# yum install rrdtool rrdtool-perl perl-Time-HiRes perl-GD -y

Download the latest tarball of PNP4Nagios from http://www.pnp4nagios.org/.

Go to the directory in which you have downloaded the PNP4Nagios tarball, and extract it.

# cd /soft/nagios
# tar xvf pnp4nagios-0.6.25.tar.gz

Go the directory, where PNP4Nagios is extracted, and install it.

# cd pnp4nagios-0.6.25
# ./configure
# make all
# make fullinstall

PNP4Nagios Configuration

Edit nagios.cfg and comment (#) all performance parameters.

# vi /usr/local/nagios/etc/nagios.cfg

Add following parameters in nagios.cfg.

process_performance_data=1
# service performance data
service_perfdata_file=/usr/local/pnp4nagios/var/service-perfdata
service_perfdata_file_template=DATATYPE::SERVICEPERFDATAtTIMET::$TIMET$tHOSTNAME::$HOSTNAME$tSERVICEDESC::$SERVICEDESC$tSERVICEPERFDATA::$SERVICEPERFDATA$tSERVICECHECKCOMMAND::$SERVICECHECKCOMMAND$tHOSTSTATE::$HOSTSTATE$tHOSTSTATETYPE::$HOSTSTATETYPE$tSERVICESTATE::$SERVICESTATE$tSERVICESTATETYPE::$SERVICESTATETYPE$
service_perfdata_file_mode=a
service_perfdata_file_processing_interval=15
service_perfdata_file_processing_command=process-service-perfdata-file

# host performance data
host_perfdata_file=/usr/local/pnp4nagios/var/host-perfdata
host_perfdata_file_template=DATATYPE::HOSTPERFDATAtTIMET::$TIMET$tHOSTNAME::$HOSTNAME$tHOSTPERFDATA::$HOSTPERFDATA$tHOSTCHECKCOMMAND::$HOSTCHECKCOMMAND$tHOSTSTATE::$HOSTSTATE$tHOSTSTATETYPE::$HOSTSTATETYPE$
host_perfdata_file_mode=a
host_perfdata_file_processing_interval=15
host_perfdata_file_processing_command=process-host-perfdata-file

Now edit commands.cfg.

# vi /usr/local/nagios/etc/objects/commands.cfg

Add following commands in commands.cfg.

define command{
       command_name    process-service-perfdata-file
       command_line    /bin/mv /usr/local/pnp4nagios/var/service-perfdata /usr/local/pnp4nagios/var/spool/service-perfdata.$TIMET$
}

define command{
       command_name    process-host-perfdata-file
       command_line    /bin/mv /usr/local/pnp4nagios/var/host-perfdata /usr/local/pnp4nagios/var/spool/host-perfdata.$TIMET$
}

Start and enable npcd service.

# /usr/local/pnp4nagios/bin/npcd -d -f /usr/local/pnp4nagios/etc/npcd.cfg
# systemctl enable npcd.service

Restart nagios and httpd services.

# systemctl restart nagios.service
# systemctl restart httpd.service

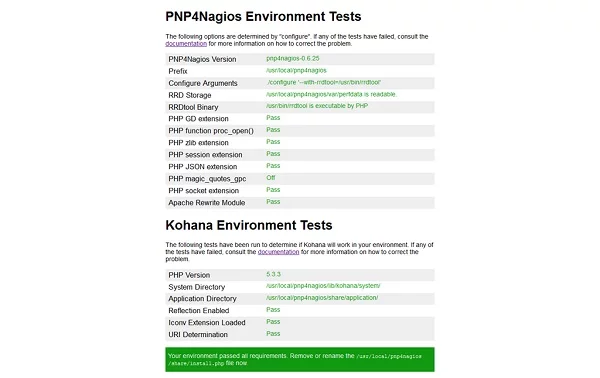

Open the URL http://192.168.229.131/pnp4nagios in a client’s browser to check configurations, and if there is a failure in environment test then rectify it. (Change the IP address to your Nagios server’s here.)

It didn’t show me any failure.

Now remove the file /usr/local/pnp4nagios/share/install.php

# rm -f /usr/local/pnp4nagios/share/install.php

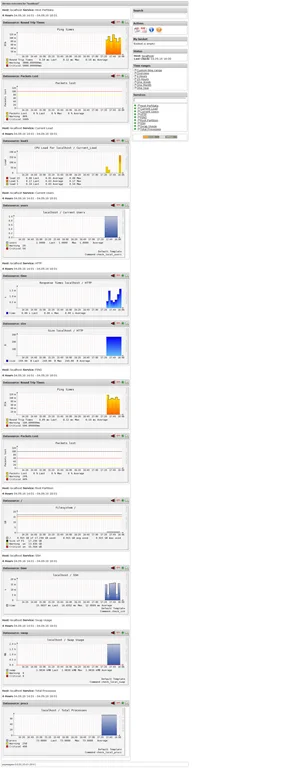

Again, open the URL http://192.168.229.131/pnp4nagios in a client’s browser and this time you will see the graphs.

We have successfully installed PNP4Nagios plugin on our Nagios Core Server over CentOS 7.

Super Easy Linux / Bash : The Ultimate Guide to Linux Commands and Bash Scripting: From Begginer to Advanced

$9.88 (as of February 23, 2025 17:35 GMT +00:00 – More infoProduct prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.)

Final Thoughts

Installing PNP4Nagios on CentOS 7 is a great way to enhance your Nagios monitoring setup with powerful performance data graphing and visualization. By following this guide, you can successfully set up PNP4Nagios and gain deeper insights into your system’s performance.

If you need further assistance or prefer to have a professional handle the installation, I’m here to help! Check out my Fiverr service: Linux Technical Support for expert support in setting up PNP4Nagios and other server-related tasks.
