Learn how to install FreeIPA on CentOS 8 with our detailed, step-by-step guide. Follow easy instructions to set up a robust identity management solution for centralized authentication, authorization, and account information. #centlinux #linux #freeipa

What is FreeIPA?

FreeIPA is an open source and free software that provides a centrally managed IPA (Identity, Policy and Audit) system. FreeIPA uses a combination of 389 Directory Server, MIT Kerberos, NTP, DNS, IGC DogTag and other free open-source components.

FreeIPA is developed by Red Hat and distributed under GNU General Public License.

In this Lab, you will learn how to install FreeIPA server on CentOS 8, we will also configure a CentOS 8 client to use FreeIPA services.

Read Also:

Components of FreeIPA Server

Core components of a FreeIPA server are.

Recommended Training for You: FreeIPA – IdM, Identity Management

2115430 153e 6show?id=oLRJ54lcVEg&offerid=1597309.3919712428583118538295589&bids=1597309

Linux Server Specification

We are using a CentOS 8 minimal installed virtual machine with following specification.

  • CPU – 3.4 Ghz (2 cores)
  • Memory – 2 GB
  • Storage – 20 GB
  • Operating System – CentOS Linux 8.0
  • Hostname – freeipa-01.recipes.com
  • IP Address – 192.168.116.206 /24

Configure Static IP Address on CentOS 8

Connect with freeipa-01.recipes.com as root user by using a SSH tool.

This server is currently using a DHCP assigned IP Address. Configure network connection and manually assigned IP address, gateway and dns.

# nmcli connection modify ens33
> ipv4.method manual
> ipv4.address 192.168.116.206/24
> ipv4.gateway 192.168.116.2
> ipv4.dns 192.168.116.206

Restart network connection to load changes.

# nmcli connection down ens33 ; nmcli c up ens33
Connection 'ens33' successfully deactivated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/2)
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/3)

Add an entry in local DNS resolver.

# echo "192.168.116.206 freeipa-01.recipes.com freeipa-01" >> /etc/hosts

Install FreeIPA on CentOS 8

In CentOS 8, FreeIPA is available in AppStream repository, bundled in IDM module with different profiles to install according to sysadmins’ requirements.

We are installing selective profiles required to configure the FreeIPA server.

# dnf module install -y idm:DL1/{server,client,dns,adtrust}

FreeIPA server and related packages have been installed on our CentOS 8 server. Now we have to configure the FreeIPA installation according to our requirement.

# ipa-server-install
> --unattended
> --realm RECIPES.COM
> --ds-password Ahmer@1234
> --admin-password Ahmer@1234
> --setup-dns
> --auto-reverse
> --forwarder 192.168.116.2

The log file for this installation can be found in /var/log/ipaserver-install.log
==============================================================================
This program will set up the IPA Server.
Version 4.8.0

This includes:
  * Configure a stand-alone CA (dogtag) for certificate management
  * Configure the NTP client (chronyd)
  * Create and configure an instance of Directory Server
  * Create and configure a Kerberos Key Distribution Center (KDC)
  * Configure Apache (httpd)
  * Configure DNS (bind)
  * Configure the KDC to enable PKINIT

Warning: skipping DNS resolution of host freeipa-01.recipes.com
The domain name has been determined based on the host name.

Checking DNS domain recipes.com., please wait ...
DNS check for domain recipes.com. failed: The DNS operation timed out after 30.00042724609375 seconds.
Checking DNS forwarders, please wait ...
DNS server 192.168.116.2 does not support DNSSEC: answer to query '. SOA' is missing DNSSEC signatures (no RRSIG data)
Please fix forwarder configuration to enable DNSSEC support.
(For BIND 9 add directive "dnssec-enable yes;" to "options {}")
DNS server 192.168.116.2: answer to query '. SOA' is missing DNSSEC signatures (no RRSIG data)
Please fix forwarder configuration to enable DNSSEC support.
(For BIND 9 add directive "dnssec-enable yes;" to "options {}")
WARNING: DNSSEC validation will be disabled
Checking DNS domain 116.168.192.in-addr.arpa., please wait ...
Reverse zone 116.168.192.in-addr.arpa. for IP address 192.168.116.206 already exists

The IPA Master Server will be configured with:
Hostname:       freeipa-01.recipes.com
IP address(es): 192.168.116.206
Domain name:    recipes.com
Realm name:     RECIPES.COM

The CA will be configured with:
Subject DN:   CN=Certificate Authority,O=RECIPES.COM
Subject base: O=RECIPES.COM
Chaining:     self-signed

BIND DNS server will be configured to serve IPA domain with:
Forwarders:       192.168.116.2
Forward policy:   only
Reverse zone(s):  No reverse zone

Disabled p11-kit-proxy
Synchronizing time
No SRV records of NTP servers found and no NTP server or pool address was provided.
Using default chrony configuration.
Attempting to sync time with chronyc.
Process chronyc waitsync failed to sync time!
Unable to sync time with chrony server, assuming the time is in sync. Please check that 123 UDP port is opened, and any time server is on network.
Warning: IPA was unable to sync time with chrony!
         Time synchronization is required for IPA to work correctly
Configuring directory server (dirsrv). Estimated time: 30 seconds
  [1/44]: creating directory server instance

Starting installation...
Created symlink /etc/systemd/system/multi-user.target.wants/dirsrv@RECIPES-COM.service â /usr/lib/systemd/system/dirsrv@.service.
Opening SELinux policy "//etc/selinux/targeted/policy/policy.31"
Successfully opened SELinux policy "//etc/selinux/targeted/policy/policy.31"
Allocate local instance <class 'lib389.DirSrv'> with ldapi://%2fvar%2frun%2fslapd-RECIPES-COM.socket
  [2/44]: configure autobind for root
  [3/44]: stopping directory server
  [4/44]: updating configuration in dse.ldif
  [5/44]: starting directory server
  [6/44]: adding default schema
  [7/44]: enabling memberof plugin
  [8/44]: enabling winsync plugin
  [9/44]: configure password logging
  [10/44]: configuring replication version plugin
  [11/44]: enabling IPA enrollment plugin
  [12/44]: configuring uniqueness plugin
  [13/44]: configuring uuid plugin
  [14/44]: configuring modrdn plugin
  [15/44]: configuring DNS plugin
  [16/44]: enabling entryUSN plugin
  [17/44]: configuring lockout plugin
  [18/44]: configuring topology plugin
  [19/44]: creating indices
  [20/44]: enabling referential integrity plugin
  [21/44]: configuring certmap.conf
  [22/44]: configure new location for managed entries
  [23/44]: configure dirsrv ccache and keytab
  [24/44]: enabling SASL mapping fallback
  [25/44]: restarting directory server
  [26/44]: adding sasl mappings to the directory
  [27/44]: adding default layout
  [28/44]: adding delegation layout
  [29/44]: creating container for managed entries
  [30/44]: configuring user private groups
  [31/44]: configuring netgroups from hostgroups
  [32/44]: creating default Sudo bind user
  [33/44]: creating default Auto Member layout
  [34/44]: adding range check plugin
  [35/44]: creating default HBAC rule allow_all
  [36/44]: adding entries for topology management
  [37/44]: initializing group membership
  [38/44]: adding master entry
  [39/44]: initializing domain level
  [40/44]: configuring Posix uid/gid generation
  [41/44]: adding replication acis
  [42/44]: activating sidgen plugin
  [43/44]: activating extdom plugin
  [44/44]: configuring directory to start on boot
Done configuring directory server (dirsrv).
Configuring Kerberos KDC (krb5kdc)
  [1/10]: adding kerberos container to the directory
  [2/10]: configuring KDC
  [3/10]: initialize kerberos container
  [4/10]: adding default ACIs
  [5/10]: creating a keytab for the directory
  [6/10]: creating a keytab for the machine
  [7/10]: adding the password extension to the directory
  [8/10]: creating anonymous principal
  [9/10]: starting the KDC
  [10/10]: configuring KDC to start on boot
Done configuring Kerberos KDC (krb5kdc).
Configuring kadmin
  [1/2]: starting kadmin
  [2/2]: configuring kadmin to start on boot
Done configuring kadmin.
Configuring ipa-custodia
  [1/5]: Making sure custodia container exists
  [2/5]: Generating ipa-custodia config file
  [3/5]: Generating ipa-custodia keys
  [4/5]: starting ipa-custodia
  [5/5]: configuring ipa-custodia to start on boot
Done configuring ipa-custodia.
Configuring certificate server (pki-tomcatd). Estimated time: 3 minutes
  [1/30]: configuring certificate server instance
  [2/30]: Add ipa-pki-wait-running
  [3/30]: reindex attributes
  [4/30]: exporting Dogtag certificate store pin
  [5/30]: stopping certificate server instance to update CS.cfg
  [6/30]: backing up CS.cfg
  [7/30]: disabling nonces
  [8/30]: set up CRL publishing
  [9/30]: enable PKIX certificate path discovery and validation
  [10/30]: starting certificate server instance
  [11/30]: configure certmonger for renewals
  [12/30]: requesting RA certificate from CA
  [13/30]: setting audit signing renewal to 2 years
  [14/30]: restarting certificate server
  [15/30]: publishing the CA certificate
  [16/30]: adding RA agent as a trusted user
  [17/30]: authorizing RA to modify profiles
  [18/30]: authorizing RA to manage lightweight CAs
  [19/30]: Ensure lightweight CAs container exists
  [20/30]: configure certificate renewals
  [21/30]: configure Server-Cert certificate renewal
  [22/30]: Configure HTTP to proxy connections
  [23/30]: restarting certificate server
  [24/30]: updating IPA configuration
  [25/30]: enabling CA instance
  [26/30]: migrating certificate profiles to LDAP
  [27/30]: importing IPA certificate profiles
  [28/30]: adding default CA ACL
  [29/30]: adding 'ipa' CA entry
  [30/30]: configuring certmonger renewal for lightweight CAs
Done configuring certificate server (pki-tomcatd).
Configuring directory server (dirsrv)
  [1/3]: configuring TLS for DS instance
  [2/3]: adding CA certificate entry
  [3/3]: restarting directory server
Done configuring directory server (dirsrv).
Configuring ipa-otpd
  [1/2]: starting ipa-otpd
  [2/2]: configuring ipa-otpd to start on boot
Done configuring ipa-otpd.
Configuring the web interface (httpd)
  [1/21]: stopping httpd
  [2/21]: backing up ssl.conf
  [3/21]: disabling nss.conf
  [4/21]: configuring mod_ssl certificate paths
  [5/21]: setting mod_ssl protocol list
  [6/21]: configuring mod_ssl log directory
  [7/21]: disabling mod_ssl OCSP
  [8/21]: adding URL rewriting rules
  [9/21]: configuring httpd
Nothing to do for configure_httpd_wsgi_conf
  [10/21]: setting up httpd keytab
  [11/21]: configuring Gssproxy
  [12/21]: setting up ssl
  [13/21]: configure certmonger for renewals
  [14/21]: publish CA cert
  [15/21]: clean up any existing httpd ccaches
  [16/21]: configuring SELinux for httpd
  [17/21]: create KDC proxy config
  [18/21]: enable KDC proxy
  [19/21]: starting httpd
  [20/21]: configuring httpd to start on boot
  [21/21]: enabling oddjobd
Done configuring the web interface (httpd).
Configuring Kerberos KDC (krb5kdc)
  [1/1]: installing X509 Certificate for PKINIT
Done configuring Kerberos KDC (krb5kdc).
Applying LDAP updates
Upgrading IPA:. Estimated time: 1 minute 30 seconds
  [1/11]: stopping directory server
  [2/11]: saving configuration
  [3/11]: disabling listeners
  [4/11]: enabling DS global lock
  [5/11]: disabling Schema Compat
  [6/11]: starting directory server
  [7/11]: updating schema
  [8/11]: upgrading server
  [9/11]: stopping directory server
  [10/11]: restoring configuration
  [11/11]: starting directory server
Done.
Restarting the KDC
Configuring DNS (named)
  [1/11]: generating rndc key file
  [2/11]: adding DNS container
  [3/11]: setting up our zone
  [4/11]: setting up our own record
  [5/11]: setting up records for other masters
  [6/11]: adding NS record to the zones
  [7/11]: setting up kerberos principal
  [8/11]: setting up named.conf
  [9/11]: setting up server configuration
  [10/11]: configuring named to start on boot
  [11/11]: changing resolv.conf to point to ourselves
Done configuring DNS (named).
Restarting the web server to pick up resolv.conf changes
Configuring DNS key synchronization service (ipa-dnskeysyncd)
  [1/7]: checking status
  [2/7]: setting up bind-dyndb-ldap working directory
  [3/7]: setting up kerberos principal
  [4/7]: setting up SoftHSM
  [5/7]: adding DNSSEC containers
  [6/7]: creating replica keys
  [7/7]: configuring ipa-dnskeysyncd to start on boot
Done configuring DNS key synchronization service (ipa-dnskeysyncd).
Restarting ipa-dnskeysyncd
Restarting named
Updating DNS system records
Configuring client side components
This program will set up IPA client.
Version 4.8.0

Using existing certificate '/etc/ipa/ca.crt'.
Client hostname: freeipa-01.recipes.com
Realm: RECIPES.COM
DNS Domain: recipes.com
IPA Server: freeipa-01.recipes.com
BaseDN: dc=recipes,dc=com

Configured sudoers in /etc/authselect/user-nsswitch.conf
Configured /etc/sssd/sssd.conf
Systemwide CA database updated.
Adding SSH public key from /etc/ssh/ssh_host_ed25519_key.pub
Adding SSH public key from /etc/ssh/ssh_host_ecdsa_key.pub
Adding SSH public key from /etc/ssh/ssh_host_rsa_key.pub
WARNING: The configuration pre-client installation is not managed by authselect and cannot be backed up. Uninstallation may not be able to revert to the original state.
SSSD enabled
Configured /etc/openldap/ldap.conf
Configured /etc/ssh/ssh_config
Configured /etc/ssh/sshd_config
Configuring recipes.com as NIS domain.
Client configuration complete.
The ipa-client-install command was successful

==============================================================================
Setup complete

Next steps:
        1. You must make sure these network ports are open:
                TCP Ports:
                  * 80, 443: HTTP/HTTPS
                  * 389, 636: LDAP/LDAPS
                  * 88, 464: kerberos
                  * 53: bind
                UDP Ports:
                  * 88, 464: kerberos
                  * 53: bind
                  * 123: ntp

        2. You can now obtain a kerberos ticket using the command: 'kinit admin'
           This ticket will allow you to use the IPA tools (e.g., ipa user-add)
           and the web user interface.

Be sure to back up the CA certificates stored in /root/cacert.p12
These files are required to create replicas. The password for these
files is the Directory Manager password
The ipa-server-install command was successful

Allow required service ports in CentOS 8 firewall.

# firewall-cmd --permanent --add-service={http,https,ldap,ldaps,kerberos,dns,ntp}
success
# firewall-cmd --reload
success

Verify status of FreeIPA Server components.

# ipactl status
Directory Service: RUNNING
krb5kdc Service: RUNNING
kadmin Service: RUNNING
named Service: RUNNING
httpd Service: RUNNING
ipa-custodia Service: RUNNING
pki-tomcatd Service: RUNNING
ipa-otpd Service: RUNNING
ipa-dnskeysyncd Service: RUNNING
ipa: INFO: The ipactl command was successful

Before starting administration of FreeIPA server, We need to acquire a Kerberos ticket.

# kinit admin
Password for admin@RECIPES.COM:

Check list of available kerberos tickets.

# klist
Ticket cache: KCM:0
Default principal: admin@RECIPES.COM

Valid starting       Expires              Service principal
02/07/2020 22:31:24  02/08/2020 22:31:17  krbtgt/RECIPES.COM@RECIPES.COM

You can see that, we have acquired a kerberos ticket for 24 hours.

Check FreeIPA existing configurations.

# ipa config-show
  Maximum username length: 32
  Maximum hostname length: 64
  Home directory base: /home
  Default shell: /bin/sh
  Default users group: ipausers
  Default e-mail domain: recipes.com
  Search time limit: 2
  Search size limit: 100
  User search fields: uid,givenname,sn,telephonenumber,ou,title
  Group search fields: cn,description
  Enable migration mode: FALSE
  Certificate Subject base: O=RECIPES.COM
  Password Expiration Notification (days): 4
  Password plugin features: AllowNThash, KDC:Disable Last Success
  SELinux user map order: guest_u:s0$xguest_u:s0$user_u:s0$staff_u:s0-s0:c0.c1023$sysadm_u:s0-s0:c0.c1023$unconfined_u:s0-s0:c0.c1023
  Default SELinux user: unconfined_u:s0-s0:c0.c1023
  Default PAC types: MS-PAC, nfs:NONE
  IPA masters: freeipa-01.recipes.com
  IPA master capable of PKINIT: freeipa-01.recipes.com
  IPA CA servers: freeipa-01.recipes.com
  IPA CA renewal master: freeipa-01.recipes.com
  IPA DNS servers: freeipa-01.recipes.com

Configure DNS Server settings

Allow zone transfer from local network.

# ipa dnszone-mod --allow-transfer=192.168.116.0/24 recipes.com
  Zone name: recipes.com.
  Active zone: TRUE
  Authoritative nameserver: freeipa-01.recipes.com.
  Administrator e-mail address: hostmaster.recipes.com.
  SOA serial: 1581348934
  SOA refresh: 3600
  SOA retry: 900
  SOA expire: 1209600
  SOA minimum: 3600
  Allow query: any;
  Allow transfer: 192.168.116.0/24;

Add MX (Mail Exchange) record in DNS server.

# ipa dnsrecord-add recipes.com @ --mx-rec="0 mail-server.recipes.com"
  Record name: @
  MX record: 0 mail-server.recipes.com
  NS record: freeipa-01.recipes.com.

Export Users’ Home Directories by using NFS server

We need to install nfs-utils package to configure a NFS server. FreeIPA has already installed nfs-utils package as a dependency.

Enable and start nfs-server and rpcbind services.

# systemctl enable --now nfs-server rpcbind
Created symlink /etc/systemd/system/multi-user.target.wants/nfs-server.service â /usr/lib/systemd/system/nfs-server.service.

Allow NFS server related ports in CentOS 8 firewall.

# firewall-cmd --permanent --add-service={nfs,mountd,rpc-bind}
success
# firewall-cmd --reload
success

Create a directory to store FreeIPA users’ home directories.

# mkdir /home/guests

Export users’ home directories.

# echo '/home/guests 192.168.116.0/24(rw,sync,no_subtree_check,root_squash)' >> /etc/exports
# exportfs -rav
exporting 192.168.116.0/24:/home/guests

Add NFS service in FreeIPA server.

# ipa service-add nfs/freeipa-01.recipes.com
------------------------------------------------------
Added service "nfs/freeipa-01.recipes.com@RECIPES.COM"
------------------------------------------------------
  Principal name: nfs/freeipa-01.recipes.com@RECIPES.COM
  Principal alias: nfs/freeipa-01.recipes.com@RECIPES.COM
  Managed by: freeipa-01.recipes.com

Add entry in keytab.

# kadmin.local
Authenticating as principal admin/admin@RECIPES.COM with password.
kadmin.local:  ktadd nfs/freeipa-01.recipes.com
Entry for principal nfs/freeipa-01.recipes.com with kvno 1, encryption type aes256-cts-hmac-sha1-96 added to keytab FILE:/etc/krb5.keytab.
Entry for principal nfs/freeipa-01.recipes.com with kvno 1, encryption type aes128-cts-hmac-sha1-96 added to keytab FILE:/etc/krb5.keytab.
Entry for principal nfs/freeipa-01.recipes.com with kvno 1, encryption type camellia128-cts-cmac added to keytab FILE:/etc/krb5.keytab.
Entry for principal nfs/freeipa-01.recipes.com with kvno 1, encryption type camellia256-cts-cmac added to keytab FILE:/etc/krb5.keytab.
kadmin.local:  exit

Configure default home directory and shell for new FreeIPA users.

# ipa config-mod --homedirectory=/home/guests --defaultshell=/bin/bash
  Maximum username length: 32
  Maximum hostname length: 64
  Home directory base: /home/guests
  Default shell: /bin/bash
  Default users group: ipausers
  Default e-mail domain: recipes.com
  Search time limit: 2
  Search size limit: 100
  User search fields: uid,givenname,sn,telephonenumber,ou,title
  Group search fields: cn,description
  Enable migration mode: FALSE
  Certificate Subject base: O=RECIPES.COM
  Password Expiration Notification (days): 4
  Password plugin features: AllowNThash, KDC:Disable Last Success
  SELinux user map order: guest_u:s0$xguest_u:s0$user_u:s0$staff_u:s0-s0:c0.c1023$sysadm_u:s0-s0:c0.c1023$unconfined_u:s0-s0:c0.c1023
  Default SELinux user: unconfined_u:s0-s0:c0.c1023
  Default PAC types: MS-PAC, nfs:NONE
  IPA masters: freeipa-01.recipes.com
  IPA master capable of PKINIT: freeipa-01.recipes.com
  IPA CA servers: freeipa-01.recipes.com
  IPA CA renewal master: freeipa-01.recipes.com
  IPA DNS servers: freeipa-01.recipes.com

Create a FreeIPA user

Create a new FreeIPA user with the help of following command.

# ipa user-add ipauser1 --first=ahmer --last=mansoor --password
Password:
Enter Password again to verify:
---------------------
Added user "ipauser1"
---------------------
  User login: ipauser1
  First name: ahmer
  Last name: mansoor
  Full name: ahmer mansoor
  Display name: ahmer mansoor
  Initials: am
  Home directory: /home/guests/ipauser1
  GECOS: ahmer mansoor
  Login shell: /bin/bash
  Principal name: ipauser1@RECIPES.COM
  Principal alias: ipauser1@RECIPES.COM
  User password expiration: 20200210162435Z
  Email address: ipauser1@recipes.com
  UID: 181000001
  GID: 181000001
  Password: True
  Member of groups: ipausers
  Kerberos keys available: True

Create home directory for FreeIPA user.

# mkdir -m0750 -p /home/guests/ipauser1
# chown 181000001:181000001 /home/guests/ipauser1

Our FreeIPA setup has been completed successfully. Alternatively, you can perform administration of FreeIPA server by using the Web UI provided herewith.

Open URL http://freeipa-01.recipes.com in a browser.

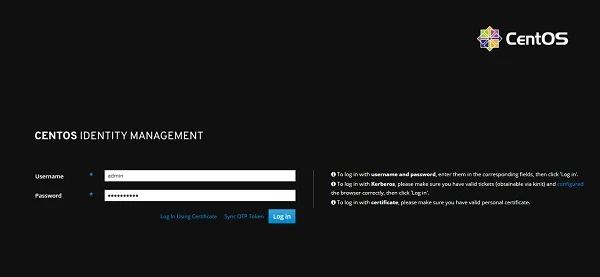

FreeIPA Server Login
FreeIPA Server Login

Login as admin user.

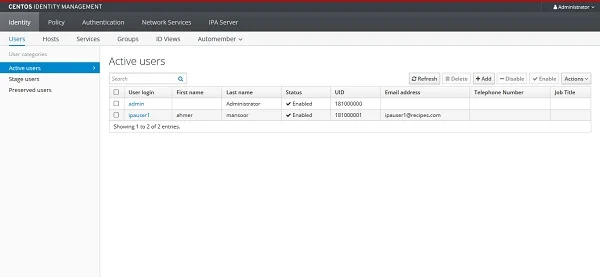

FreeIPA Active Users
FreeIPA Active Users

Add a CentOS 8 Client in FreeIPA Server

We are adding a CentOS 8 machine to FreeIPA server.

# ipa host-add --ip-address 192.168.116.207 ipaclient.recipes.com
ipa: WARNING: The host was added but the DNS update failed with: DNS reverse zone 168.192.in-addr.arpa. for IP address 192.168.116.207 is not managed by this server
----------------------------------
Added host "ipaclient.recipes.com"
----------------------------------
  Host name: ipaclient.recipes.com
  Principal name: host/ipaclient.recipes.com@RECIPES.COM
  Principal alias: host/ipaclient.recipes.com@RECIPES.COM
  Password: False
  Keytab: False
  Managed by: ipaclient.recipes.com

Add our CentOS 8 machine in DNS server.

# ipa dnsrecord-add recipes.com ipaclient --ttl=3600 --a-ip-address=192.168.116.207
  Record name: ipaclient
  Time to live: 3600
  A record: 192.168.116.207

Configure CentOS 8 machine as FreeIPA Client

To configure a CentOS 8 machine as FreeIPA client, we need to install following packages on it.

# dnf module install -y idm:DL1/client

Configure autofs to automatically mount the FreeIPA users’ home directory on ipaclient machine after successful login.

# echo '* -rw 192.168.116.206:/home/guests/&' >> /etc/auto.guests
# echo '/home/guests /etc/auto.guests' >> /etc/auto.master

Enable and start autofs service.

# systemctl enable --now autofs.service
Created symlink /etc/systemd/system/multi-user.target.wants/autofs.service â /usr/lib/systemd/system/autofs.service.

Add DNS server in network configurations of CentOS 8 client.

# nmcli c m ens33 ipv4.dns 192.168.116.206
# nmcli c down ens33 ; nmcli c up ens33
Connection 'ens33' successfully deactivated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/1)
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/2)

Test DNS resolution by using dig command.

# dig freeipa-01.recipes.com

; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el8 <<>> freeipa-01.recipes.com
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 31792
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: f52733a39c74976ba8570e005e42d2172f9f5e5797eab7b3 (good)
;; QUESTION SECTION:
;freeipa-01.recipes.com.                IN      A

;; ANSWER SECTION:
freeipa-01.recipes.com. 1200    IN      A       192.168.116.206

;; AUTHORITY SECTION:
recipes.com.            86400   IN      NS      freeipa-01.recipes.com.

;; Query time: 37 msec
;; SERVER: 192.168.116.206#53(192.168.116.206)
;; WHEN: Tue Feb 11 21:11:03 PKT 2020
;; MSG SIZE  rcvd: 109

Configure CentOS 8 client as follows.

# ipa-client-install
> --enable-dns-updates
> --mkhomedir
> --ntp-server=192.168.116.206:323
This program will set up IPA client.
Version 4.8.0

Discovery was successful!
Client hostname: ipaclient.recipes.com
Realm: RECIPES.COM
DNS Domain: recipes.com
IPA Server: freeipa-01.recipes.com
BaseDN: dc=recipes,dc=com
NTP server: 192.168.116.206:323

Continue to configure the system with these values? [no]: yes
Synchronizing time
Augeas failed to configure file /etc/chrony.conf
Using default chrony configuration.
Attempting to sync time with chronyc.
Time synchronization was successful.
User authorized to enroll computers: admin
Password for admin@RECIPES.COM:
Successfully retrieved CA cert
    Subject:     CN=Certificate Authority,O=RECIPES.COM
    Issuer:      CN=Certificate Authority,O=RECIPES.COM
    Valid From:  2020-02-06 18:32:37
    Valid Until: 2040-02-06 18:32:37

Enrolled in IPA realm RECIPES.COM
Created /etc/ipa/default.conf
Configured sudoers in /etc/authselect/user-nsswitch.conf
Configured /etc/sssd/sssd.conf
Configured /etc/krb5.conf for IPA realm RECIPES.COM
Systemwide CA database updated.
Missing reverse record(s) for address(es): 192.168.116.207, fd15:4ba5:5a2b:1008:3d9b:4777:10ac:b523.
Adding SSH public key from /etc/ssh/ssh_host_ed25519_key.pub
Adding SSH public key from /etc/ssh/ssh_host_ecdsa_key.pub
Adding SSH public key from /etc/ssh/ssh_host_rsa_key.pub
SSSD enabled
Configured /etc/openldap/ldap.conf
Configured /etc/ssh/ssh_config
Configured /etc/ssh/sshd_config
Configuring recipes.com as NIS domain.
Client configuration complete.
The ipa-client-install command was successful

Edit SSH configurations to use our FreeIPA service.

# vi /etc/ssh/sshd_config

Find and set following directives in this file.

KerberosAuthentication no
UsePAM yes

Restart sshd.service to apply changes.

# systemctl restart sshd.service

Now login as ipauser1.

# su - ipauser1
$ mount | grep /ipauser1
192.168.116.206:/home/guests/ipauser1 on /home/guests/ipauser1 type nfs4 (rw,relatime,vers=4.2,rsize=262144,wsize=262144,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.116.207,local_lock=none,addr=192.168.116.206)

You can see that the home directory for user ipauser1 has been mounted by autofs service.

We have successfully install FreeIPA on CentOS 8 and configured a client to use Domain services.

Final Thoughts

Installing FreeIPA on CentOS 8 is a fantastic way to establish a centralized identity management solution for your network. With the right setup, you can streamline authentication, enhance security, and manage user permissions effectively.

For a comprehensive and straightforward guide to help you through the installation process, check out my Fiverr gig: How to Install FreeIPA on CentOS 8. I offer expert assistance to ensure you get FreeIPA up and running smoothly on your CentOS 8 system.

Feel free to reach out if you have any questions or need additional support!

17 thoughts on “How to install FreeIPA on CentOS 8”

  1. Thanks so much Ahmer a very elaborate and conclusive write-up on IPA. Indeed very detail and easy to follow through. I did twice to make sure I didn't miss anything. Really appreciate doing such a good publication on IPA.

    I encounter a problem; perhaps I am missing some fundamentals …
    in the IPASERVER if I do I get the following:

    Problem statement:
    I can su – ipauser1 with the password. But I don't land on the /home/guests/ipauser1 directory. Seems I don't have the proper permission to the directory. Looks like I have exported out correctly to be mounted on the client.

    Problem statement:
    # su – ipauser1
    Last login: Mon Jul 5 16:37:35 EDT 2021 on pts/0
    su: warning: cannot change directory to /home/guests/ipauser1: Permission denied
    -bash: /home/guests/ipauser1/.bash_profile: Permission denied <<<<<<< problem

    I tried to debug a little bit … this is what I found:

    # ipa user-show ipauser1 | grep 'Home directory'
    Home directory: /home/guests/ipauser1

    # ls -ltrd /home/guests/ipauser1
    drwxr-x—. 2 181000001 181000001 6 Jul 1 03:00 /home/guests/ipauser1

    # ipa user-find ipauser1
    ————–
    1 user matched
    ————–
    User login: ipauser1
    First name: Ar
    Last name: fernando
    Home directory: /home/guests/ipauser1
    Login shell: /bin/bash
    Principal name: ipauser1@MYDOMAIN.LOCAL
    Principal alias: ipauser1@MYDOMAIN.LOCAL
    Email address: ipauser1@mydomain.local
    UID: 140000001
    GID: 140000001
    Account disabled: False <<<<<<<< could this be a clue ????
    —————————-
    Number of entries returned 1
    —————————-

    Thanks

  2. Hello Ahmer this is a wonderful and nicely structured write-up on IPA. Really appreciate for nice article. I tried out the process twice to make sure that I understand everything correctly.

    I ran into an issue about the user home dir permission.
    # su – ipauser1
    Last login: Mon Jul 5 16:37:35 EDT 2021 on pts/0
    su: warning: cannot change directory to /home/guests/ipauser1: Permission denied
    -bash: /home/guests/ipauser1/.bash_profile: Permission denied <<<<<<< ????

    I did little bit debugging to see whether I can fix the problem, but I failed.
    I tried the following:

    # ipa user-find ipauser1
    ————–
    1 user matched
    ————–
    User login: ipauser1
    First name: Ar
    Last name: fernando
    Home directory: /home/guests/ipauser1
    Login shell: /bin/bash
    Principal name: ipauser1@MYDOMAIN.LOCAL
    Principal alias: ipauser1@MYDOMAIN.LOCAL
    Email address: ipauser1@mydomain.local
    UID: 140000001
    GID: 140000001
    Account disabled: False <<<<<<<<<<<<<<<< ????
    —————————-
    Number of entries returned 1
    —————————-

    # ipa user-show ipauser1 | grep 'Home directory'
    Home directory: /home/guests/ipauser1

    I tried to ' su – ipauser' on the ipserserver system.
    But it still produces the same error.

    # ls -ld /home/guests/ipauser1/
    drwxr-x—. 2 181000001 181000001 6 Jul 1 03:00 /home/guests/ipauser1/

    Using IPA Gui, i.e. web interface I can log on as 'ipauser1' with it's password.
    But I cannot su – ipauser1 or ssh -X ipauser1@ipaserver (also, tried with fqdn).

    Appreciate your insight to the matter.

  3. Hi, Thanks for your kind remarks.

    It looks like you have created ipauser1 twice. The existing directory has the permissions for other UID (181000001) than ipauser1 (140000001).

    Delete ipauser1 and home directory manually. Then create this user again.

    May be this resolve your problem. Please confirm.

  4. Thanks Ahmer.
    Yes, now I understand what has gone wrong. I copied your UID:GID rather than my ipa user-add command output. Now it works as it is expected.
    Now the ipauser permission issue resolved.

    Appreciate your feedback.

  5. Hi Ahmer – why do you use "–mkhomedir" in the ipa-client-install?

    # ipa-client-install
    > –enable-dns-updates
    > –mkhomedir
    > –ntp-server=192.168.116.206:323

    I thought the homedir automount is required and nothing else is required.

    Thanks

  6. I have an issue with redhat8.4 distribution. I cannot 'su – ipauser1'.
    I have no issues with centos8.4. Appreciate some guidance to debug the issue.

    Some info:
    on IPA-server:
    # ipactl status
    Directory Service: RUNNING
    krb5kdc Service: RUNNING
    kadmin Service: RUNNING
    named Service: RUNNING
    httpd Service: RUNNING
    ipa-custodia Service: RUNNING
    pki-tomcatd Service: RUNNING
    ipa-otpd Service: RUNNING
    ipa-dnskeysyncd Service: RUNNING
    ipa: INFO: The ipactl command was successful

    # id ipauser1
    uid=140000005(ipauser1) gid=140000005(ipauser1) groups=140000005(ipauser1

    From IPA-client:
    # id ipauser1
    id: ‘ipauser1’: no such user

    I even changed the SELinux to be PERMISSIVE. And stopped the firewalld.
    But no luck.

    Thanks for your insight to the issue.

  7. It looks like your FreeIPA client is not configured properly. Please execute the ipa-client-install command again to reconfigure it.

    Please contact me on our Facebook page, if the problem persists.

  8. Sorry! I found the problem I have configured the virt environment resulting some 'fencing' configuration. That prevented complete ipa-client-install with –mkhomedir. I had to uninstall the virt environment to complete the successful ipa-client-install. Now it's working.

Leave a Comment
