What is Icinga Web 2?

Icinga web 2 is a PHP based web application that provides a web interface for Icinga 2 network monitoring server. Icinga Web 2 is fast, responsive, accessible and easily extensible with modules.

Icinga Web 2 is a powerful and flexible web interface for the Icinga monitoring system. It provides a user-friendly way to manage and visualize the performance and availability of your IT infrastructure. Key features of Icinga Web 2 include:

  1. Enhanced User Experience: Intuitive and responsive design for easy navigation and monitoring.
  2. Modular Architecture: Extendable with modules to add new functionalities and integrations.
  3. Advanced Reporting: Generate detailed reports and dashboards for better insights.
  4. Customization: Tailor the interface to meet specific monitoring needs with customizable views and themes.
  5. User Management: Manage user roles and permissions effectively.
  6. Real-Time Monitoring: Provides real-time status updates and notifications for quick issue resolution.

Icinga Web 2 is a valuable tool for system administrators and IT professionals to ensure their infrastructure runs smoothly and efficiently.

Icinga Web 2 provides an intuitive user interface to monitor network devices with Icinga 2. Especially there are lots of list and detail views for hosts and services. You can sort and filter depending on what you want to see.

System administrators can also control the network monitoring process itself by sending external commands to Icinga. Most such actions, like rescheduling a check, can be done with just a single click.

We have configured an Icinga 2 server on CentOS 8 in our previous post. Now we are exploring how to install Icinga Web 2 on the same CentOS 8 server.

Instructions in this article are of advance level, if you are new to Linux world then we strongly recommend you to read Red Hat RHCSA 8 Cert Guide: EX200 (Certification Guide) (PAID LINK) by Pearson IT Certification. It will provides basic to intermediate knowledge about the RHEL (Red Hat Enterprise Linux) 8, CentOS 8 or similar Linux distros.

Environment Specification

We are using a CentOS 8 (minimal) virtual machine with following specifications.

  • CPU – 3.4 Ghz (2 cores)
  • Memory – 2 GB
  • Storage – 20 GB
  • Operating System – CentOS 8.0
  • Hostname – icinga-2.centlinux.com
  • IP Address – 192.168.116.206 /24

Install Apache and PHP on CentOS 8

Icinga Web 2 is a PHP based web interface for Icinga 2. Therefore, we need a PHP application server to deploy it.

Connect with icinga-2.centlinux.com as root user by using a ssh client.

We are installing Apache web server and PHP by using following dnf command.

# dnf install -y httpd php-fpm php-ldap php-json

Add a default page for Apache web server. It is mandatory, or otherwise Icinga’s HTTP service will raise an 403 Forbidden Error.

# echo "HomePage" > /var/www/html/index.html
# chmod 755 /var/www/html/index.html

Start and enable Apache and PHP services.

# systemctl enable --now httpd.service php-fpm.service
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service       /lib/systemd/system/httpd.service.
Created symlink /etc/systemd/system/multi-user.target.wants/php-fpm.servic      sr/lib/systemd/system/php-fpm.service.

Allow Apache service in CentOS 8 firewall.

# firewall-cmd --permanent --add-service=http
success
# firewall-cmd --reload
success

Create a MySQL Database for Icinga Web 2

We have already installed MariaDB on the same Network Monitoring server in our previous post. Therefore, we can now create the Icinga Web 2 backend database on the same MySQL server.

Login to MySQL server as root user.

# mysql -u root -p123
Welcome to the MariaDB monitor.  Commands end with ; or g.
Your MariaDB connection id is 16
Server version: 10.3.11-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

MariaDB [(none)]>

Create a MySQL database for Icinga Web 2 as follows.

MariaDB [(none)]> CREATE DATABASE icingaweb;
Query OK, 1 row affected (0.028 sec)

Create a database user for Icinga Web 2 and grant complete privileges on icinga database.

MariaDB [(none)]> GRANT ALL PRIVILEGES ON icingaweb.* TO 'icinga'@'localhost' IDENTIFIED BY 'Ahmer@1234';
Query OK, 0 rows affected (0.143 sec)

Reload privileges table and exit from MySQL shell.

MariaDB [(none)]> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.066 sec)

MariaDB [(none)]> EXIT;
Bye

Install Icinga Web 2 on CentOS 8

We have already added the Icinga 2 yum repository in our Linux package manager. Therefore, we can easily install Icinga Web 2 and Icinga CLI using a dnf command.

# dnf install -y icingacli icingaweb2 icingaweb2-selinux

Icinga Web 2 web application runs as apache user, therefore, we need to adjust SELinux file context, so the apache user can edit Icinga Web 2 configuration files in /etc/icingaweb2 directory.

# semanage fcontext -a -t httpd_sys_rw_content_t /etc/icingaweb2
# restorecon -Rv /etc/icingaweb2
Relabeled /etc/icingaweb2 from system_u:object_r:etc_t:s0 to system_u:object_r:httpd_sys_rw_content_t:s0

Generate Icinga Web 2 configurations for Apache web server.

# icingacli setup config webserver apache
Alias /icingaweb2 "/usr/share/icingaweb2/public"

# Remove comments if you want to use PHP FPM and your Apache version is older than 2.4
#<IfVersion < 2.4>
#    # Forward PHP requests to FPM
#    SetEnvIf Authorization "(.*)" HTTP_AUTHORIZATION=$1
#    <LocationMatch "^/icingaweb2/(.*.php)$">
#        ProxyPassMatch "fcgi://127.0.0.1:9000//usr/share/icingaweb2/public/$1"
#    </LocationMatch>
#</IfVersion>

<Directory "/usr/share/icingaweb2/public">
    Options SymLinksIfOwnerMatch
    AllowOverride None

    DirectoryIndex index.php

    <IfModule mod_authz_core.c>
        # Apache 2.4
        <RequireAll>
            Require all granted
        </RequireAll>
    </IfModule>

    <IfModule !mod_authz_core.c>
        # Apache 2.2
        Order allow,deny
        Allow from all
    </IfModule>

    SetEnv ICINGAWEB_CONFIGDIR "/etc/icingaweb2"

    EnableSendfile Off

    <IfModule mod_rewrite.c>
        RewriteEngine on
        RewriteBase /icingaweb2/
        RewriteCond %{REQUEST_FILENAME} -s [OR]
        RewriteCond %{REQUEST_FILENAME} -l [OR]
        RewriteCond %{REQUEST_FILENAME} -d
        RewriteRule ^.*$ - [NC,L]
        RewriteRule ^.*$ index.php [NC,L]
    </IfModule>

    <IfModule !mod_rewrite.c>
        DirectoryIndex error_norewrite.html
        ErrorDocument 404 /icingaweb2/error_norewrite.html
    </IfModule>

# Remove comments if you want to use PHP FPM and your Apache version
# is greater than or equal to 2.4
#    <IfVersion >= 2.4>
#        # Forward PHP requests to FPM
#        SetEnvIf Authorization "(.*)" HTTP_AUTHORIZATION=$1
#        <FilesMatch ".php$">
#            SetHandler "proxy:fcgi://127.0.0.1:9000"
#            ErrorDocument 503 /icingaweb2/error_unavailable.html
#        </FilesMatch>
#    </IfVersion>
</Directory>

Restart Apache service to apply new configurations.

# systemctl restart httpd.service

Run Icinga Web 2 Setup

Generate a token for using on the Icinga web 2 setup.

# icingacli setup token create
The newly generated setup token is: da04f0b87929cec8

Open URL http://icinga-2.centlinux.com/icingaweb2/setup in a web browser.

Icinga Web 2 Configurations
Icinga Web 2 Configurations

The web setup of Icinga Web 2 has been started.

Enter the token here and click on Next.

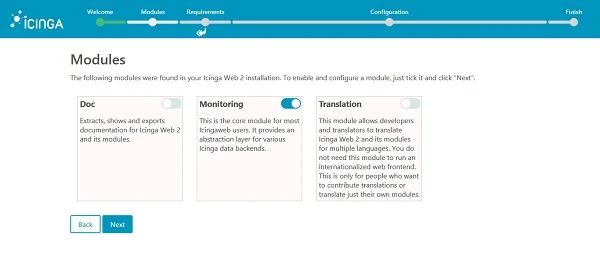

Icinga Web 2 Configurations - Modules
Icinga Web 2 Configurations – Modules

Select the module to enable and click on Next.

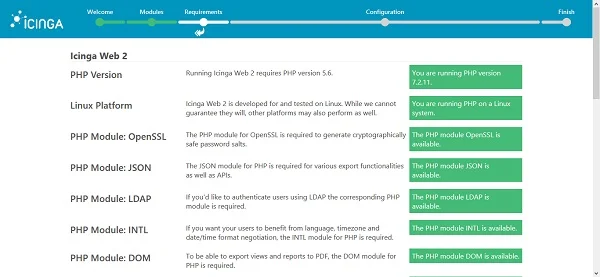

Icinga Web 2 Configurations - Requirements
Icinga Web 2 Configurations – Requirements

Check and rectify if there is any missing requirement.

Click on Next.

Icinga Web 2 Configurations - Authentication
Icinga Web 2 Configurations – Authentication

Choose your preferred authentication type. We are using “Database” authentication type.

Click on Next.

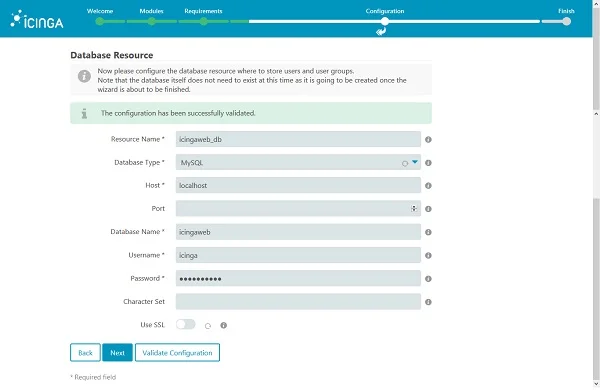

Icinga Web 2 Configurations - Database Resource
Icinga Web 2 Configurations – Database Resource

Define parameters to access our MySQL data store and click on Validate configuration.

When done, click on Next.

Icinga Web 2 Authentication Backend
Icinga Web 2 Authentication Backend

Click on Next.

Icinga Web 2 Administration
Icinga Web 2 Administration

Create an admin user for Icinga Web 2 and click on Next.

Icinga Web 2 Application Configuration
Icinga Web 2 Application Configuration

Customize settings according to your requirements and click on Next.

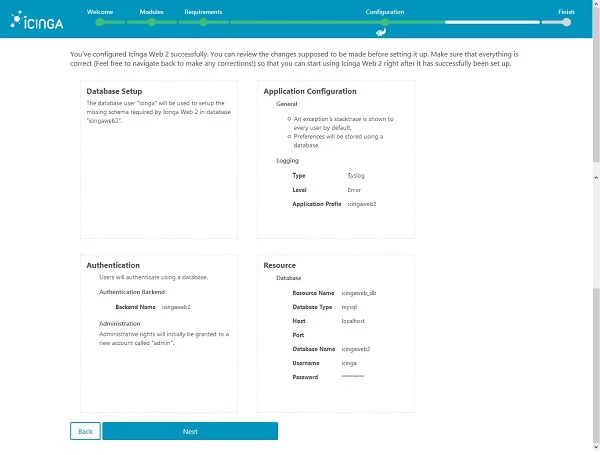

Icinga Web 2 Review Configurations
Icinga Web 2 Review Configurations

Review the configurations that we have made so far and click on Next.

Icinga Web 2 Configuration - Welcome
Icinga Web 2 Configuration – Welcome

Click on Next.

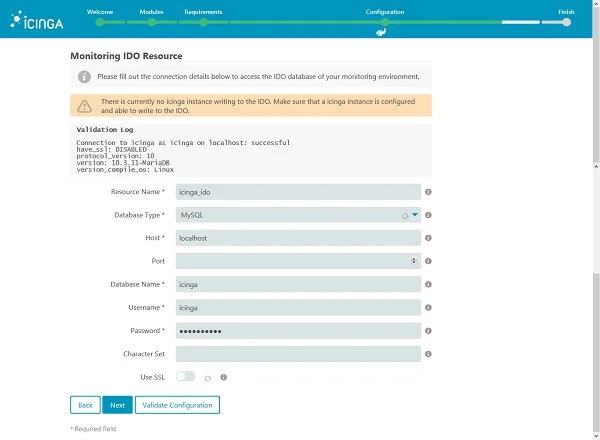

Icinga Web 2 - Configure MySQL Datastore
Icinga Web 2 – Configure MySQL Datastore

Define parameters to access our MySQL data store and click on Validate configuration.

Icinga Web 2 - Command Transport
Icinga Web 2 – Command Transport

Choose “Local Command File” as Transport Type.

Click on Next.

Icinga Web 2 - Monitoring Security
Icinga Web 2 – Monitoring Security

Click on Next.

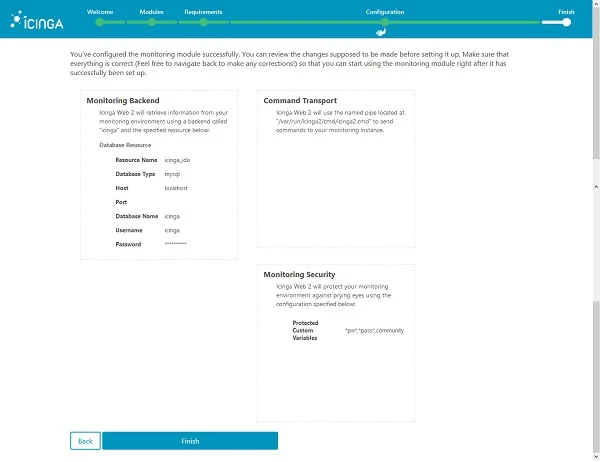

Icinga Web 2 Configuration - Finish
Icinga Web 2 Configuration – Finish

Click on Finish.

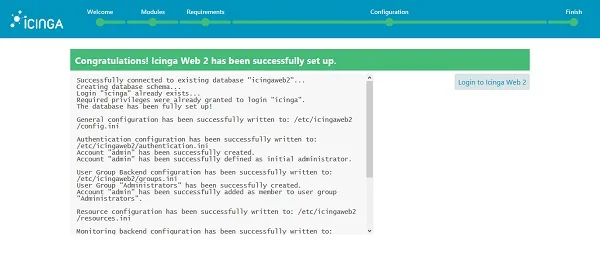

Icinga Web 2 Configuration Completed
Icinga Web 2 Configuration Completed

Click on Login.

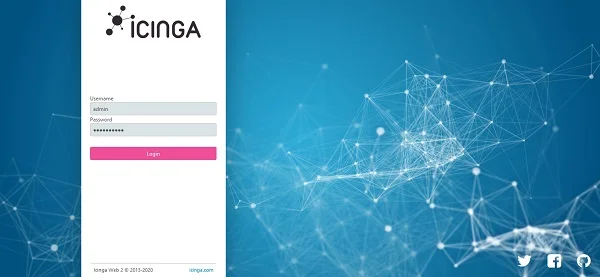

Icinga Web 2 Login
Icinga Web 2 Login

Login as admin user.

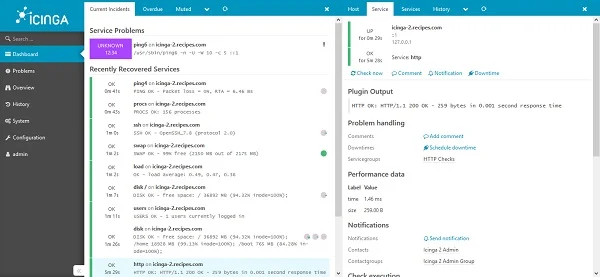

Icinga Web 2 Dashboard
Icinga Web 2 Dashboard

We are now at the dashboard of the Icinga Web 2.

Recommended Online Training: Learn Bash Shell in Linux for Beginners

745772 0021

Final Thoughts

Installing Icinga Web 2 on CentOS 8 enhances your monitoring capabilities by providing a powerful and user-friendly interface. This guide has outlined the necessary steps to get Icinga Web 2 up and running, ensuring you can efficiently monitor and manage your IT infrastructure. By following these instructions, you can leverage the full potential of Icinga Web 2 for real-time monitoring, detailed reporting, and seamless system management.
